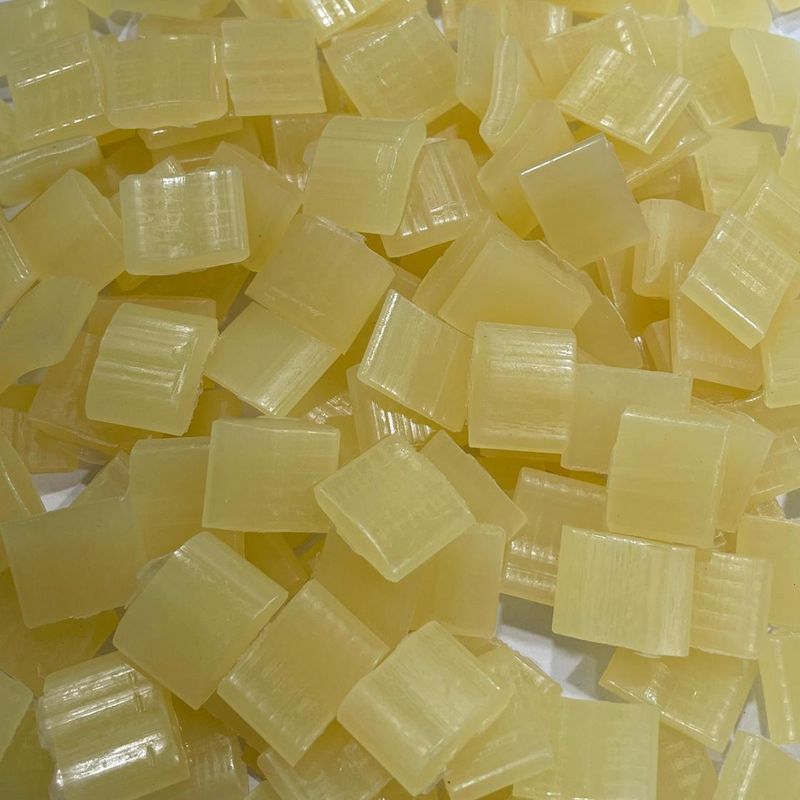

Actual product photograph — Chips, pale yellow
Filters
Two line pleating on air filters
UPT-3191 is supplied as chips, pale yellow with a ring & ball softening point of 100°C - 110°C and a Brookfield viscosity of 4,500 - 5,500 cPs @180°C. Base polymer: Ethylene Vinyl Acetate.
- Base polymer
- Ethylene Vinyl Acetate
- Form
- Chips
- Colour
- Pale Yellow
- Softening point (Ring & Ball)
- 100°C - 110°C
- Flow point
- ≥100°C
- Viscosity (Brookfield)
- 4,500 - 5,500 cPs @180°C
Free trial sample up to 1 kg dispatched to your plant. Signed technical datasheet, MSDS and COA issued with every enquiry.
Product benefits
- Holds pleat spacing accurately
- Good heat resistance
- Clean bead, no stringing
Application areas
- Two line pleating
- Air filters
Technical specification
UPT-3191 data
| Base polymer | Ethylene Vinyl Acetate |
|---|---|
| Form | Chips |
| Colour | Pale Yellow |
| Softening point (Ring & Ball) | 100°C - 110°C |
| Flow point | ≥100°C |
| Viscosity (Brookfield) | 4,500 - 5,500 cPs @180°C |
| Surface touch | No Ambient Tack |
| Shelf life | 12 months in unopened original packing below 40°C |
| Product family | Filters |
| Primary application | Air filters |
Typical values, not specification limits. Colour may vary batch to batch without affecting performance.
Related grades
Others in Filters
Request a free trial sample of UPT-3191 — up to 1 kg
We dispatch the sample, run the trial on your line, and quote only when it works.
